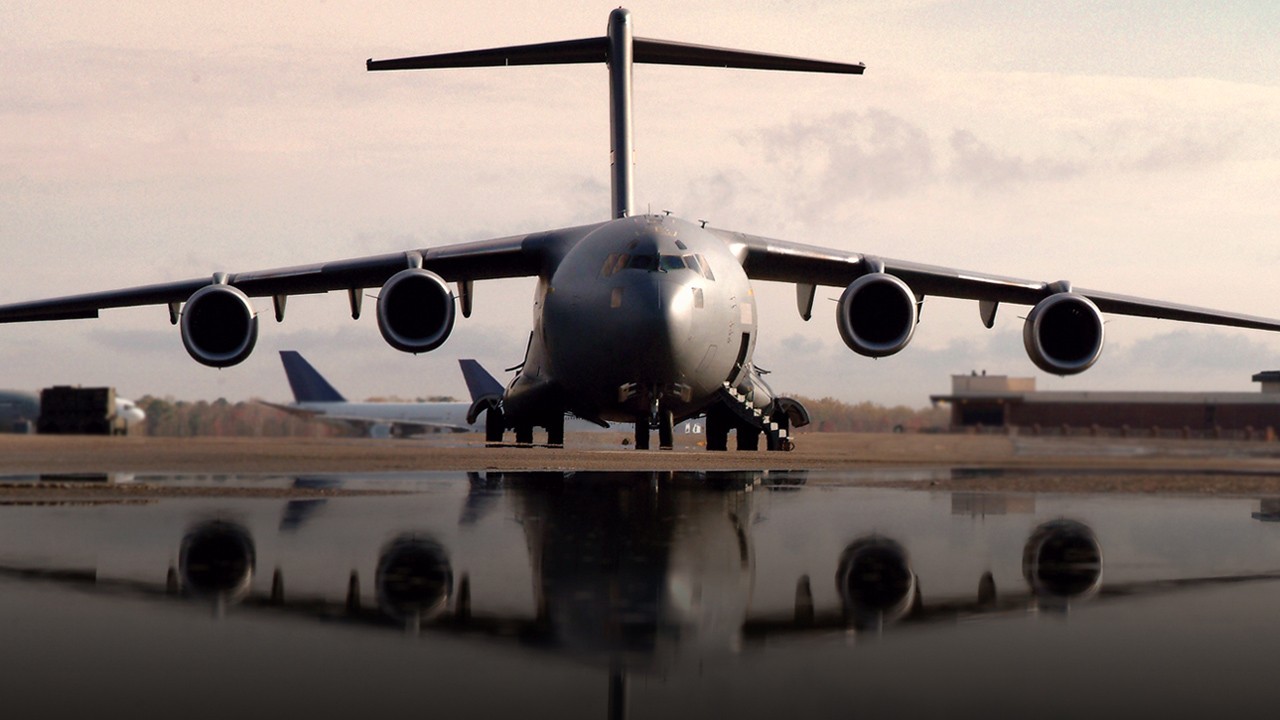

C-17 Globemaster III

C-17 Globemaster III

The massive long-haul military transport aircraft tackles distance, destination and heavy, oversized payloads in unpredictable conditions.

Always Dependable. Always Ready.

A high-wing, four-engine, T-tailed military transport aircraft, the multi-service C-17 can carry large equipment, supplies and troops directly to small airfields in harsh terrain anywhere in the world. The massive, sturdy, long-haul aircraft tackles distance, destination and heavy, oversized payloads in unpredictable conditions. It has delivered cargo in every worldwide operation since the 1990s.

Lifecycle Sustainment

Boeing has partnered with the U.S. Air Force on C-17 sustainment since the delivery of the first aircraft in 1993. With a focus on high performance at an affordable cost, Boeing provides sustainment and maintenance for global C-17 customers in eight allied countries. The C-17 fleet has a best-in-class combined dollar per flight hour and mission capable rate, performing at the highest level of readiness worldwide.

Support

Under the Globemaster III Sustainment Program contract, Boeing is fully responsible and accountable for total weapon system availability executing program management, sustaining logistics, material and equipment management, sustaining engineering and depot-level aircraft maintenance. On-site base support includes personnel for base management and operations support, field services and engineering technical support and 24/7 base supply support for spares.

Training

Train The Way You Operate

Boeing provides comprehensive C-17 Globemaster III training solutions for aircrews and loadmasters with advanced simulation, courseware and computer-based training. C-17 operators can practice the complete range of tasks required for tactical military airlift operations and humanitarian missions, along with rehearsal of other scenarios such as aerial refueling and emergency procedures.

C-17 Globemaster III Technical Specifications

External Dimensions
Wingspan to Winglet Tip 169.8 ft (51.74 m)
Length 174 ft (53.04 m)
Height at Tail 55.1 ft (16.79 m)
Fuselage Diameter 22.5 ft (6.86 m)



Engines
Four Pratt & Whitney PW2040 (military designation F117-PW-100) 40,440 pounds thrust each



Seating
Sidewall (Permanently Installed) 54 (27 each side, 18 inches wide, 24 inch spacing center to center)
Centerline (stored on board) 48 (in sets of six back-to-back, 8 sets)
Palletized 80 on 8 pallets, plus 54 passengers on sidewall seats



Cockpit
Flight crew 2 pilots
Observer positions 2
Instrument displays 2 full-time all-function head-up displays (HUD), 4 multi-function active matrix liquid crystal displays
Navigation system Digital electronics
Communication Integrated radio management system with communications system open architecture (COSA)
Flight controls system Quadruple-redundant electronic flight control with mechanical backup system



Wing
Area 3,800 sq. ft. (353 sq. m)
Aspect Ratio 7.165
Sweep Angle 25 degrees
Airfoil Type Supercritical
Flaps Fixed-vane, double-slotted, simple-hinged



Horizontal Tail
Area 845 sq. ft. (78.50 sq. m)
Span 65 feet (19.81 m)
Aspect Ratio 5.0
Sweep 27 degrees

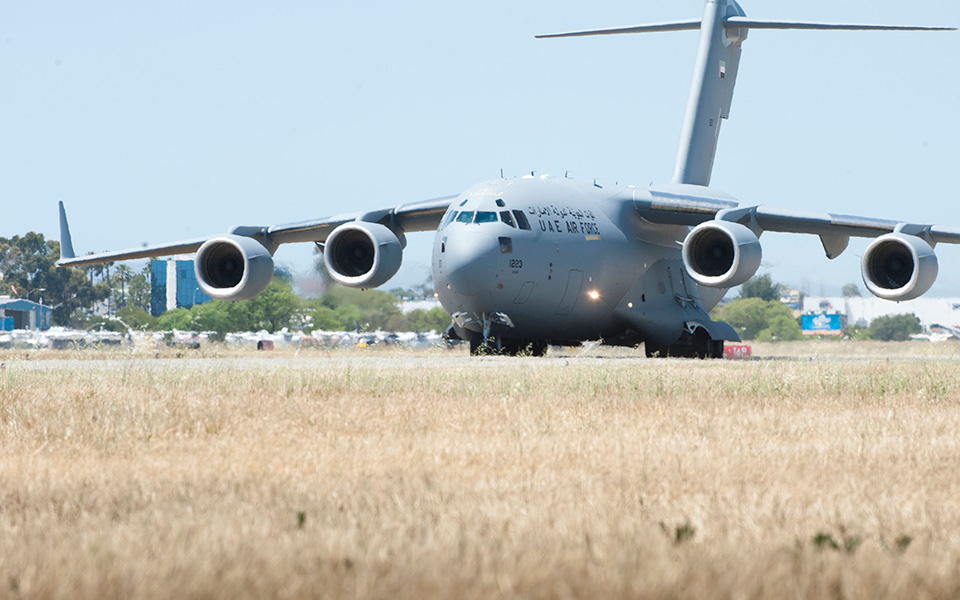

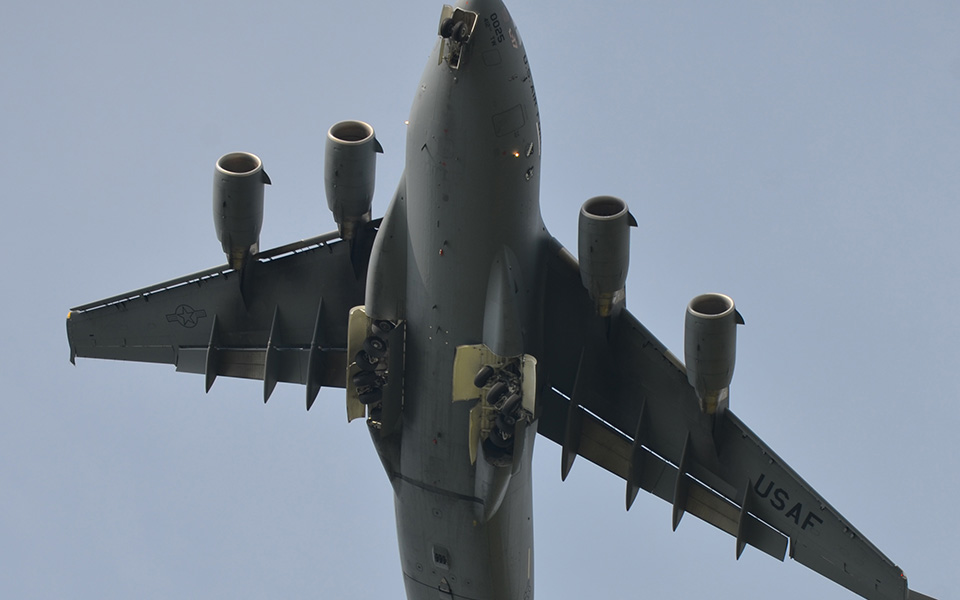

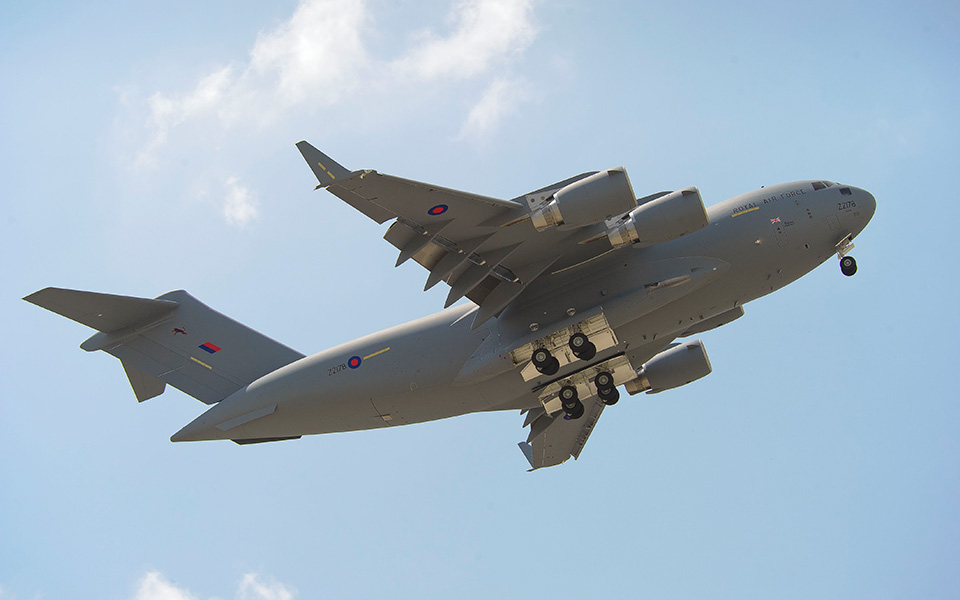

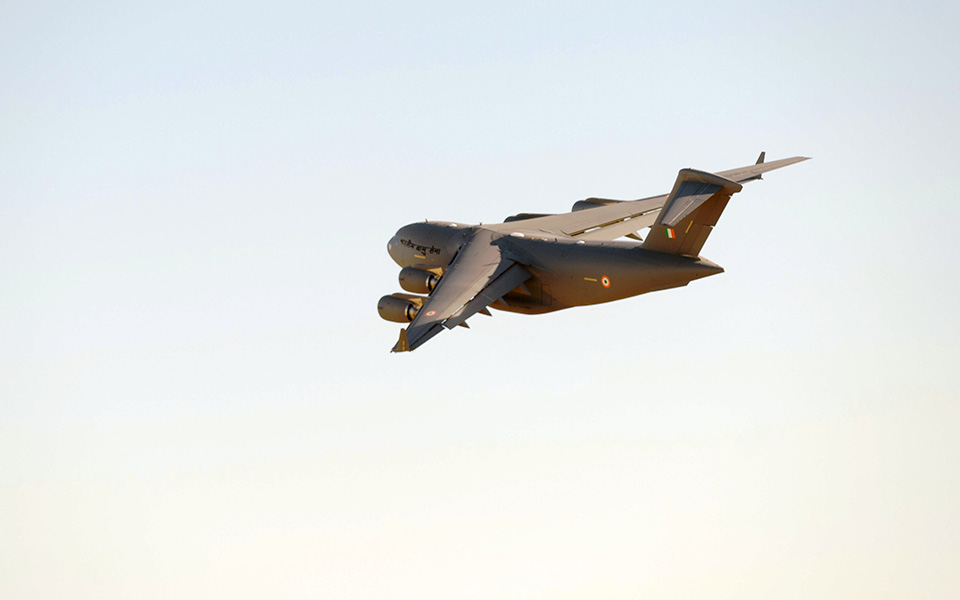

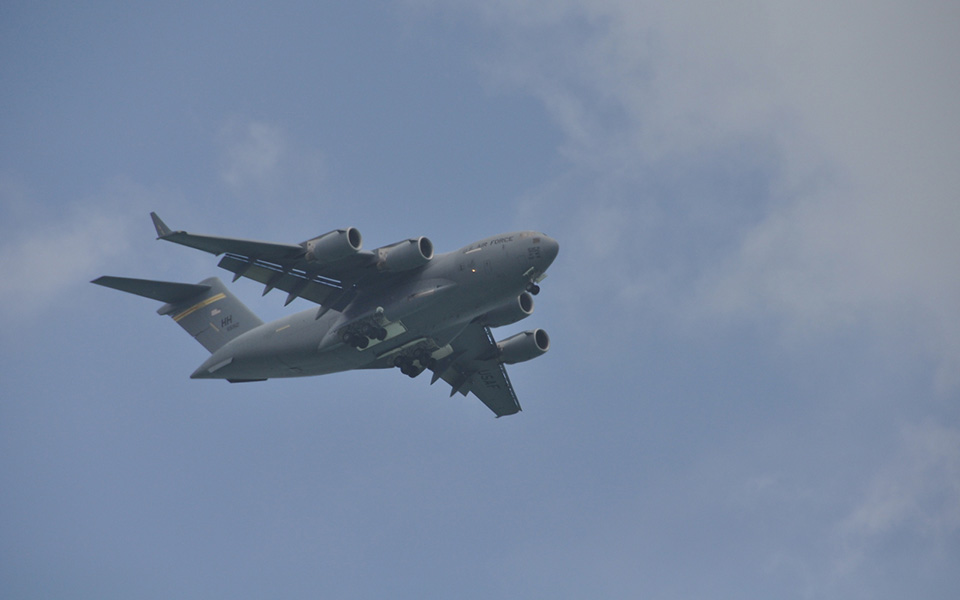

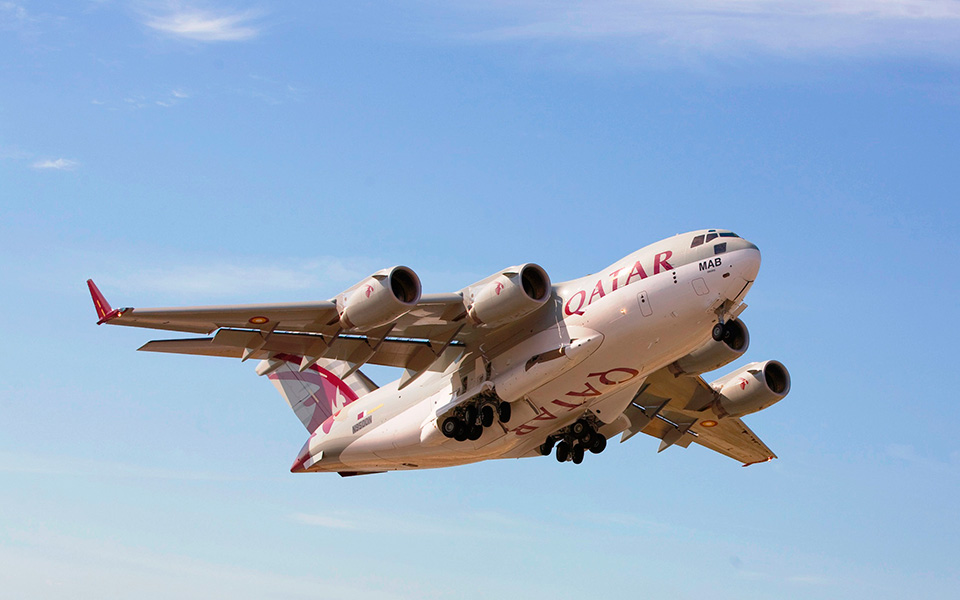

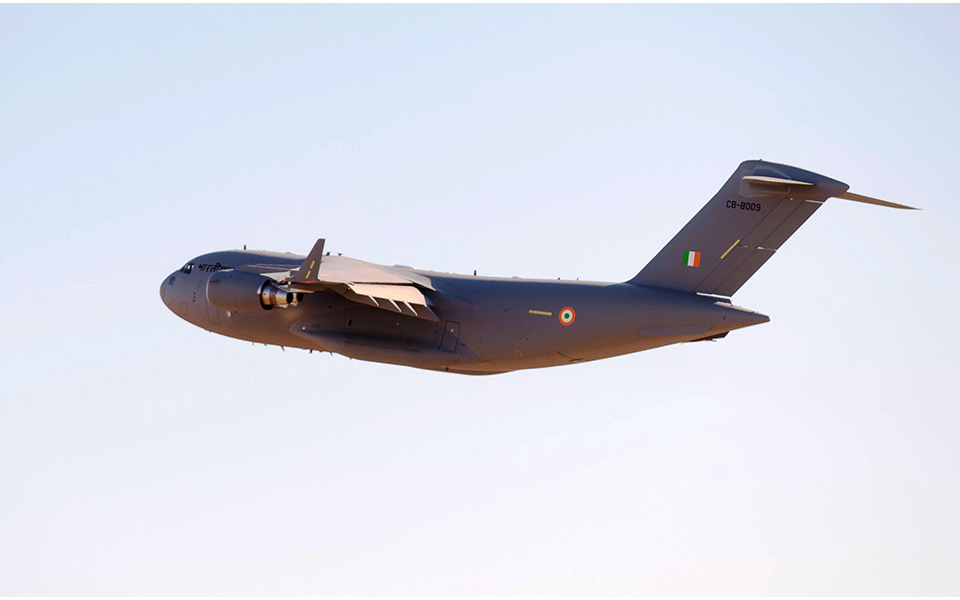

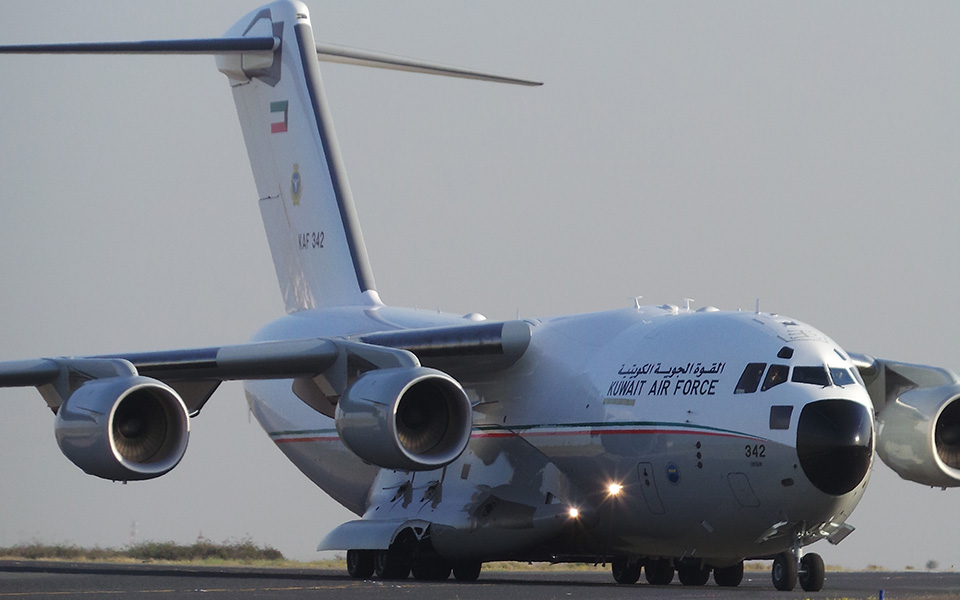

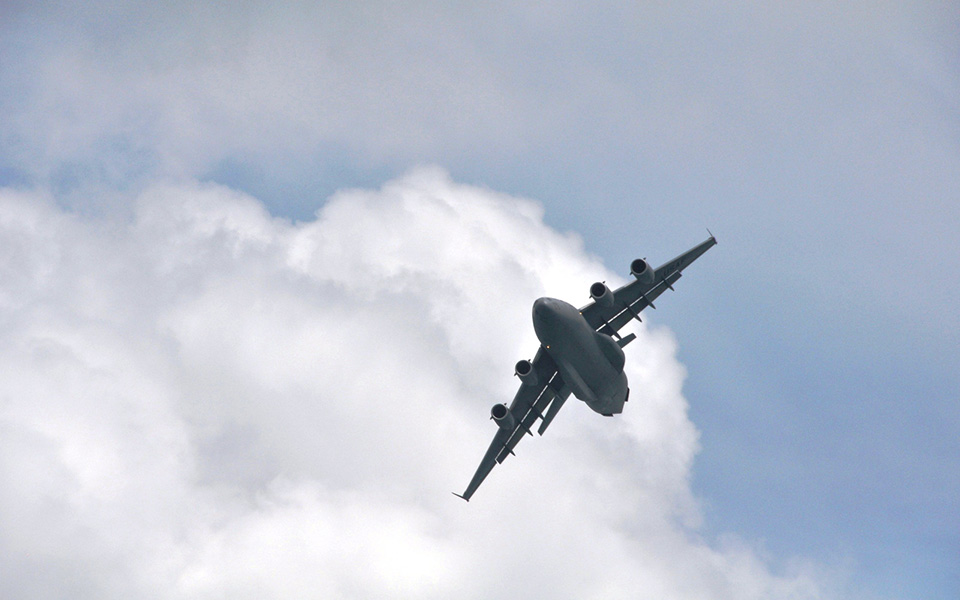

C-17 Globemaster III Gallery

C-17 Globemaster III Customers

Currently, 275 C-17s operate around the world. The aircraft's largest customer is the United States Air Force, with 223 in 12 bases. Outside of that country, the United Kingdom, Australia, Canada, Kuwait, Qatar, the United Arab Emirates, India and the 12-nation Strategic Airlift Capability all operate the C-17 Globemaster III.

Flag of Australia
Australia
Flag of Canada
Canada
Flag of India
India
Flag of Kuwait
Kuwait
Flag of Qatar
Qatar
Flag of Strategic Airlift Capability
Strategic Airlift Capability
Flag of United Arab Emirates
United Arab Emirates
Flag of United Kingdom
United Kingdom
Flag of United States
United States

C-17 Quick Facts

The C-17 can:

  • Take off from a 7,740-foot (2359.15-meter) airfield
  • Carry a payload of up to 164,900 pounds (74,797 kg)
  • Fly 6,230 nautical miles with no payload
  • Refuel while in flight
  • Land in 3,000 feet (914 meters) or less on a small unpaved or paved airfield in day or night.
  • Carry a cargo of wheeled U.S. Army vehicles in two side-by-side rows, including the U.S. Army's main battle tank, the M-1
  • Drop a single 60,000-pound (27,216-kilogram) payload, with sequential load drops of 110,000 pounds (49,895 kilograms)
  • Back up a 2-percent slope
  • Seat 54 on the sidewall and 48 in the centerline.
